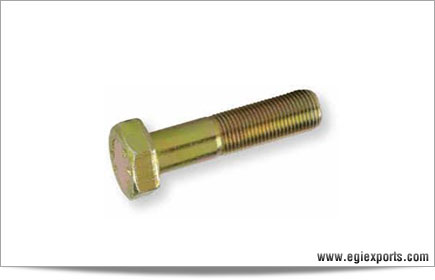

HEX HEAD BOLT |
|
 |
| SIZE |
METRIC:M12, M14, M16, M18, M20, M22, M24, M27, M30,
M33 M36, ,M39, M42, M45, M48, M52, M56, M64, M72
INCH SERIES: 1/4”, 5/16”, 3/8” 7/16”, 1/2”, 9/16” 5/8”,
3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”, 1.3/8”, 1.1/2”, 1.5/8”,
1.3/4”, 1.7/8”, 2”, 2.1/4”, 2.1/2” |
| |
| GRADE |
BS 1768 GR. S,V
BS 1083 GR. A,B,T
GR. B8,B8M
GR. 660 (ENCONEL STEEL)
GR.4.6, 5.6, 8.8, 10.9, 12.9
GR.4.6, 5.6, 8.8, 10.9, 12.9
Gr.8.8 , 10.9
GR. B8,B8M |
| |
| DIMENSION |
BS 1768
BS 1083
ASME B18.2.3.3M
ASME B18.2.2
IS 1364 Part 1
IS 1363 Part 1
DIN 931
ASME B18.2.3.3M
ASME B18.2.3.3M |
| |
| CHEMICAL & MECHANICAL |
BS 1768
BS 1083
ASTM A193
ASTM A453
IS 1367 PART 3
IS 1367 PART 3
ISO 898-PART 1
ASTM A193
ASTM A453 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11, IS: 1573 |
| |
|
|
| |
| |

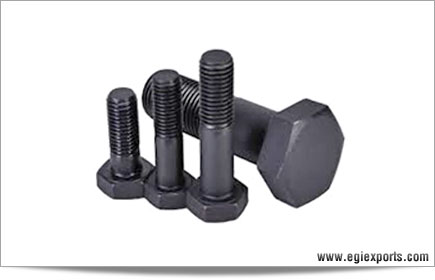

HEAVY HEAD BOLT |
|
 |
| SIZE |
METRIC: M16, M18, M20, M22, M24, M27, M30, M33 M36
INCH SERIES: 1/2”,5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”,
1.3/8”, 1.1/2” |
| |
| GRADE |
GR.8S , 10S
ASTM A490 TYPE 1
ASTM F3125-TYPE 1
ASTM A307 GR.A & B
GR.B7
GR.L7,L7M
GR. B8,B8M |
| |
| DIMENSION |
IS 3757
ASME B18.2.6
ASME B18.2.6M
ASME B18.2.3.3M |
| |
| CHEMICAL & MECHANICAL |
IS 1367 PART 3
ASTM A490
ASTM F3125
ASTM A193
ASTM A320
ASTM A193
ASTM A453 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
| |
| |

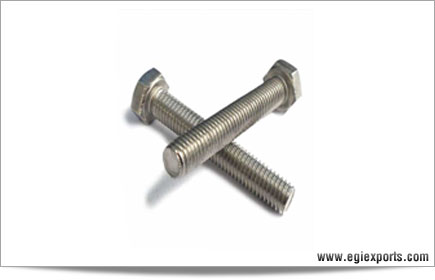

HEX HEAD SCREW |
|
 |
| SIZE |
METRIC: M12, M14, M16, M18, M20, M22, M24, M27, M30,
M33 M36, M42, M45, M48, M52, M56, M64, M72
7/16”, 1/2”, 9/16” 5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”,
1.3/8”, 1.1/2”, 1.5/8”, 1.3/4”, 1.7/8”, 2”, 2.1/4”,
2.1/2” |
| |
| GRADE |
GR.4.6, 5.6, 8.8, 10.9, 12.9
Gr.8.8 , 10.9
GR.B7,B7M,B8,B8M,B16
GR.660 (ENCONEL STEEL)
BS 1768 GR. S,V
BS 1083 GR. A,B,T
GR. B8,B8M,B7,B7M,B16
GR. L7/L7M
GR.660 (ENCONEL STEEL) |
| |
| DIMENSION |
IS 1364 Part 2
IS 1363 Part 2
DIN 931
ASME B18.2.3.3M
ASME B18.2.3.3M
BS 1768
BS 1083
ASME B18.2.1
ASME B18.2.3.3M |
| |
| CHEMICAL & MECHANICAL |
IS 1367 PART 3
ISO 898-PART 1
ASTM A193
ASTM A453
BS 1768
BS1083
ASTM A193
ASTM A320
ASTM A453 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
| |
| |

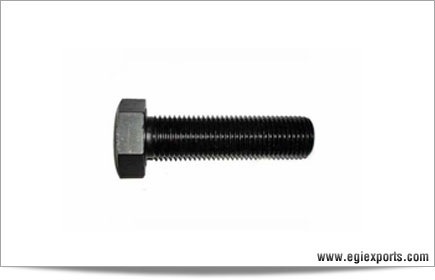

HEAVY HEX SCREW |
|
 |
| SIZE |
M16, M18, M20, M22, M24, M27, M30, M33 M36,
INCH SERIES:1/2”,5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”,
1.3/8”, 1.1/2” |
| |
| GRADE |
GR.8S ,10S
GR. B7,B7M,B16,B8,B8M ASME B18.2.3.3M ASTM A193
GR.660(ENCONEL STEEL)
GR. L7,L7M
ASTM F3125-TYPE 1
ASTM A490 TYPE 1
ASTM A307 GR.A & B |
| |
| DIMENSION |
IS 3757
ASME B18.2.3.3M
ASME B18.2.6M
ASME B18.2.6
ASME B18.2.1 |
| |
| CHEMICAL & MECHANICAL |
IS 1367 PART 3
ASTM A193
ASTM A453
ASTM A320
ASTM F3125
ASTM A490
ASTM A307 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
| |
| |
ROUND SCREW BOLT |
|
 |
| SIZE |
| M10,M12, M14, M16, M18, M20, M22, M24, M27, M30, M33
M36, ,M39, M42, M45, M48, M52, M56, M64, M72 |
| |
| GRADE |
| GR.4.6, 5.6, 8.8, 10.9, 12.9 |
| |
| DIMENSION |
| AS PER DRG |
| |
| CHEMICAL & MECHANICAL |
| IS 1367 PART 3 |
| |
| FINISH |
| HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123 BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
| |
| |

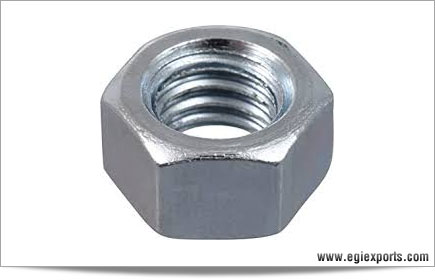

HEX NUT |
|
 |
| SIZE |
METRIC: M12, M14, M16, M18, M20, M22, M24, M27, M30,
M33 M36, M39, M42, M45, M48, M52, M56, M64, M72
INCH SERIES: 1/2”, 9/16” 5/8”, 3/4”, 7/8”, 1”, 1.1/8”,
1.1/4”, 1.3/8”, 1.1/2”, 1.5/8”, 1.3/4”, 1.7/8”, 2”,
2.1/4”, 2.3/8”, 2.1/2”, 2.5/8” , 2.3/4, 2.7/8, 3”,
3.1/4”, 3.3/8” 3.1/2” , 3.5/8”, 3.3/4”, 3.7/8” 4” |
| |
| GRADE |
GR.4,5, 6, 8, 10 ,12
GR.4,5, 6, 8, 10 ,12
Gr.8, 10
GR.8
GR.4,5, 6, 8, 10
GR.2H ,2HM, 7/7M
GR. 660 INCONEL STEEL |
| |
| DIMENSION |
IS 1364 Part 3
IS 1363 Part 3
DIN 934
ASME B18.2.2 ASME B18.2.6M
ISO 4034, ISO 4032
ASME B18.2.2 ASME B18.2.6M |
| |
| CHEMICAL & MECHANICAL |
IS 1367 PART 6
ISO 898-PART 2
ASTM A194
ISO 898 PART2
ASTM A194
ASTM A453 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 ASTM
A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
| |
| |

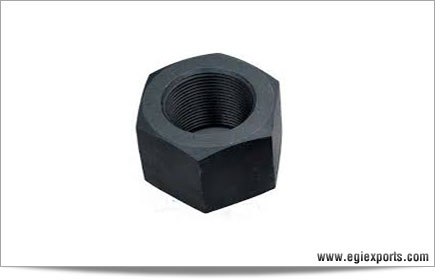

HEAVY HEX NUT |
|
 |
| SIZE |
M16, M18, M20, M22, M24, M27, M30, M33 M36, M39
1/2”, 5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”, 1.3/8”,
1.1/2”, 1.5/8”, 1.3/4”, 1.7/8”, 2”, 2.1/4”, 2.3/8”,
2.1/2”, 2.5/8” , 2.3/4, 2.7/8, 3”, 3.1/4”, 3.3/8” 3.1/2”
, 3.5/8”, 3.3/4”, 3.7/8” 4” |
| |
| GRADE |
GR.8S , 10S
ASTM A563 GR.8S ,10S GR.A, B
GR.2H ,2HM, 7
GR.8/GR.8M |
| |
| DIMENSION |
IS 3757
ASME B18.2.2, ASME B18.2.6M
ASME B18.2.2 ASME B18.2.6M
ASME B18.2.2 ASME B18.2.6M |
| |
| CHEMICAL & MECHANICAL |
IS 1367 PART 6
ASTM A563
ASTM A194
ASTM A194 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|
LOCK NUT |
|
 |
| SIZE |
| METRIC: M12, M14, M16, M18, M20, M22, M24, M27, M30,
M33 M36, M39, M42, M45, M48, M52, M56, M64 |
| |
| GRADE |
| GR.5,8,10 GR.4,5,8,10 |
| |
| DIMENSION |
| IS 1364 PART 4 ISO 4035 |
| |
| CHEMICAL & MECHANICAL |
| IS 1367 PART 6 ISO 898 PART 2 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|

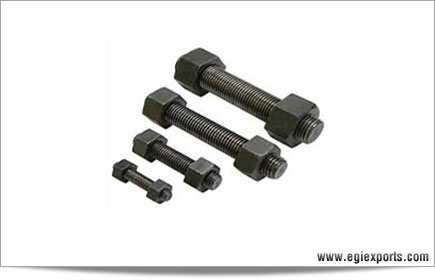

STUD |
|
 |
| SIZE |
METRIC: M12, M14, M16, M18, M20, M22, M24, M27, M30,
M33 M36, M39, M42, M45, M48, M52, M56, M64, M72
1/2”, 9/16” 5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”,
1.3/8”, 1.1/2”, 1.5/8”, 1.3/4”, 1.7/8”, 2”,
2.1/4”,2.3/8” 2.1/2”,2.5/8” 2.3/4, 2.7/8, 3”, 3.1/4”,
3.3/8” 3.1/2” , 3.5/8”, 3.3/4”, 3.7/8” 4” |
| |
| GRADE |
| GR.B7 ,B7M,B16 GR.A307 GR. A & B GR.L7,L7M, GR.660 (ENCONEL
STEEL) B8,B8 CL-2 |
| |
| DIMENSION |
| ASME B18.2 |
| |
| CHEMICAL & MECHANICAL |
| ASTM A193 ASTM A307 ASTM A320 ASTM A453 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|

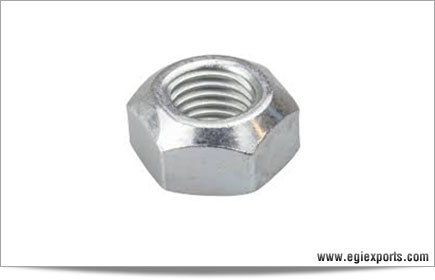

PREVAILING TORQUE NUT |
|
 |
| SIZE |
| METRIC: M12, M14, M16, M20, M24, M30, M36 |
| |
| GRADE |
| GR.8,10 |
| |
| DIMENSION |
| DIN 6925 |
| |
| CHEMICAL & MECHANICAL |
| IS 1367 PART 8 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|

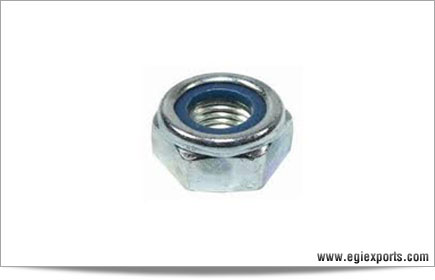

NYLOCK NUT |
|
 |
| SIZE |
| M12, M14, M16, M20, M24, M30, M36 |
| |
| GRADE |
| GR.8,10 |
| |
| DIMENSION |
| IS 7002 |
| |
| CHEMICAL & MECHANICAL |
| IS 1367 PART 8 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573
PTFE COATING: ASTM D:3294 |
| |
|
|
|
|
|
|

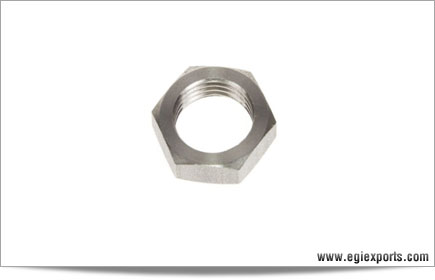

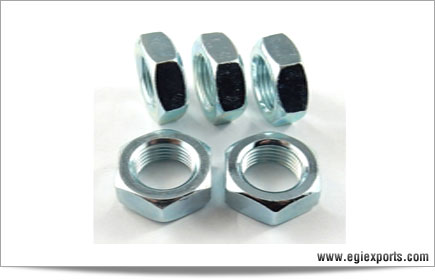

JAM NUT |
|
 |
| SIZE |
M12, M14, M16, M18, M20, M22, M24, M27, M30, M33
M36, , M42, M48, M56, M64, M72
1/2”, 9/16” 5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”,
1.3/8”, 1.1/2”, 1.5/8”, 1.3/4”, 1.7/8”, 2”, 2.1/4”,
2.3/8”, 2.1/2”, 2.5/8” , 2.3/4, 2.7/8, 3”, 3.1/4”,
3.3/8” 3.1/2” , 3.5/8”, 3.3/4”, 3.7/8” 4” |
| |
| GRADE |
| GR.2H ,2HM,7,7M |
| |
| DIMENSION |
| ASME B18.2.2 ASME B18.2.6M |
| |
| CHEMICAL & MECHANICAL |
| ASTM A194 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|

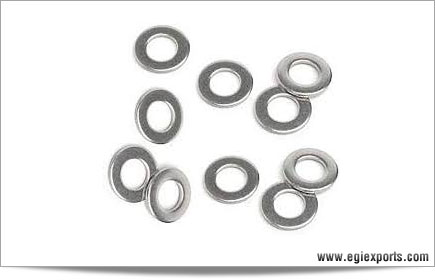

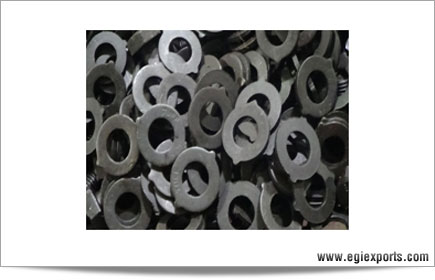

PLAIN AND MACHINED WASHER |
|
 |
| SIZE |
| M10 M12, M14, M16, M18, M20, M22, M24, M27, M30, M33
M36, M39, M42, M45, M48, M52, M56, M64, M72 |
| |
| GRADE |
IS 2062 GR. A
GR.45C8
IS 2062 GR. A
IS 2062 GR. A
IS 2062 GR. A
GR.45C8
GR.45C8 |
| |
| DIMENSION |
IS 2016
IS 2016
DIN 125
IS 5369
DIN 9021
IS 6610
BS EN 14399 PART 5 |
| |
| CHEMICAL & MECHANICAL |
IS 2062 GR. A
IS 1570 PART 2
IS 2062 GR. A
IS 2062 GR. A
IS 2062 GR. A
IS 1570 PART 2
IS 1570 PART 2 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|

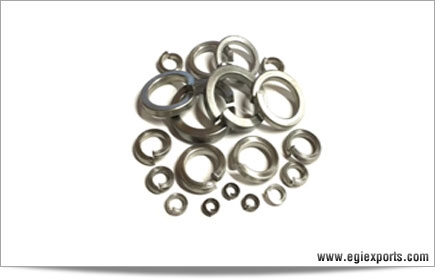

SPRING WASHER |
|
 |
| SIZE |
| M10 M12, M14, M16, M18, M20, M22, M24, M27, M30, M33
M36 |
| |
| GRADE |
| GR.70C6 |
| |
| DIMENSION |
| IS 3063 |
| |
| CHEMICAL & MECHANICAL |
| IS 3063 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|

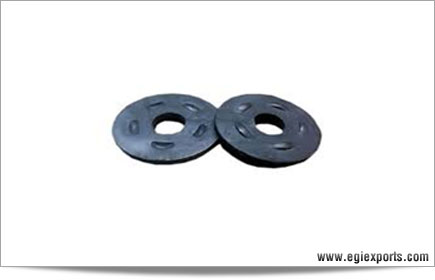

DTI WASHER |
|
 |
| SIZE |
M12,M16, M20, M22, M24, M27, M30, M36
1/2”, 5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”, 1.3/8”,
1.1/2” |
| |
| GRADE |
| GR.8.8,10.9 |
| |
| DIMENSION |
ASME B18.2.6M
BS EN 14399 PART 9 |
| |
| CHEMICAL & MECHANICAL |
ASTM F959
BS EN 14399 PART 9 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|
EAR WASHER |
|
 |
| SIZE |
| M12, M14, M16, M20, M22, M24, M27, M30, M36 |
| |
| GRADE |
| TYPE A,B,C |
| |
| DIMENSION |
| IS 6649 |
| |
| CHEMICAL & MECHANICAL |
| IS 6649 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573 |
| |
|
|
|
|
|
|

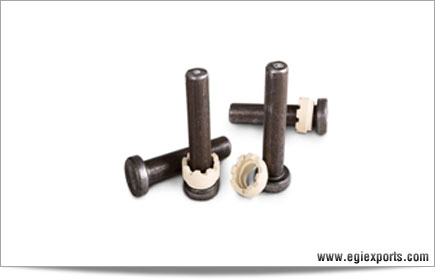

SHEAR CONNECTOR |
|
 |
| SIZE |
| 13MM, 16MM, 19MM, 22MM, 25MM |
| |
| GRADE |
| As per Standard |
| |
| DIMENSION |
| ISO 13918 |
| |
| CHEMICAL & MECHANICAL |
| ISO 13918 |
| |
| FINISH |
| SELF |
| |
|
|
|
|
|
|

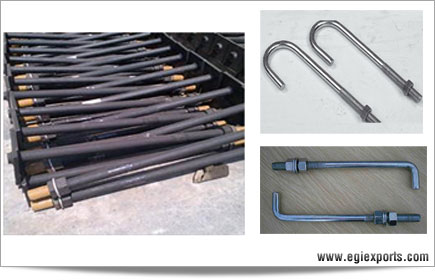

FOUNDATION BOLT (L TYPE &
J-TYPE) & MORE |
|
 |
| SIZE |
| METRIC: M6 , M8 , M10 M12, M14, M16, M18, M20, M22,
M24, M27, M30, M33 M36, M39, M42, M45, M48, M52, M56,
M64, M72, M80, M90, M100 |
| |
| GRADE |
IS 2062 GR.A
GR.4.6,5.6,8.8, 10.9 |
| |
| DIMENSION |
| AS PER DRG |
| |
| CHEMICAL & MECHANICAL |
IS 2062 GR.A
IS 1367 PART 3 |
| |
| FINISH |
HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN:
1461, ASTM A153 ASTM A123
BLACK PHOSPHATE: IS 1367 PT 12
ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573
PTFE COATING: ASTM D:3294 |
| |
|
|
|
|
|
|
|
|
|
